Telescopic boom lifts · Diesel

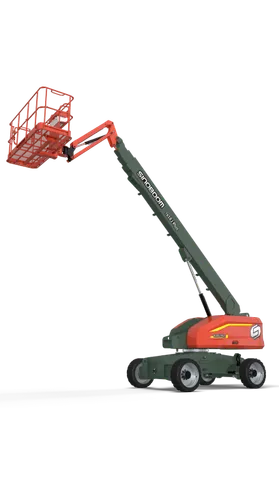

TB18J Plus (TB590J Plus)
Working height20.4m≈ 6 floors
Platform capacity454kg
Gradeability45%
Standards: CE/EAC
Highlights
High capacity
- Plus-series platform capacity of up to 454 kg (restricted) / 300 kg (restricted) / 250 kg (unrestricted) — up to 3 people plus tools and materials
Oscillating axle
- Active oscillating axle works both stowed and raised, so you can work on slopes and uneven ground
Precision performance
- Upper control box with 3 fully proportional joysticks for boom lift, telescope, turntable rotation and drive speed
- Gentle starts and stops help you reach the work point smoothly and precisely
Specifications
| Max. platform height | 18.4 m |
| Max. working height | 20.4 m |
| Max. horizontal outreach | 11.4 m/12.9 m/13.6 m |
| Length, stowed | 9.67 m |
| Width, stowed | 2.42 m |
| Height, stowed | 2.56 m |
| Wheelbase | 2.49 m |
| Ground clearance | 0.36 m |
| Platform size (L×W×H) | 2.44×0.91×1.1 m |
| Platform capacity (full envelope) | 250 kg |
| Platform capacity (restricted envelope) | 454 kg/300 kg |
| Turntable rotation | 360°/Continuous |
| Platform rotation | 160° |
| Drive speed (stowed) | 0–4.8 km/h |
| Drive speed (raised) | 0–1.1 km/h |
| Gradeability | 45% |
| Turning radius, inside | 2.4 m |
| Turning radius, outside | 4.86 m（15'11") |
| Tail swing | 1.15 m（ 3'9") |
| Max. tilt | 5° |
| Drive × steer | 4WD×2WS |
| Tyres | 33×12D610 (foam-filled) 33×12-20 (solid) |
| Power source (option) | 35.5 kW /3000 rpm/4TNV88C-DFLT/Yanmar/EU stage V、EPA Tier 4F 35.3 kW /3000 rpm/4TNV88-ZCDCSI/Yanmar/ China T4 43.2 kW/2400 rpm/V2403-CR-TIE4B /Kubota / EPA Tier 4F 36.5 kW/2600 rpm/V2403-M-DI-E3B / Kubota / China T4 |
| Auxiliary power unit | 12 V DC |
| Fuel tank (diesel) | 110 L / 29.1 gal (US)) |
| Hydraulic tank capacity | 120 L / 31.7 gal (US)) |
| Weight | 8,750 kg |
| Standards | CE/EAC |
Standard equipment
- Active oscillating axle
- 7-inch display
- 4WD × 2WS (four-wheel drive, two-wheel steer)
- Proportional controls with 3 joysticks
- Automotive-grade protective sleeves on all hoses
- Platform load sensing (overload protection)
- Hydraulic platform levelling
- AC power outlet on the platform
- Emergency stop
- Tilt protection system
- Max. tilt rating 5°
- Emergency lowering system
- Flashing beacon
- Horn and buzzer
- Fault diagnosis system
- Footswitch
- 2.44 m (8') platform with swing gate
- Foam-filled tyres
- Manual storage box
- Telematics-ready connector
- Secondary guarding device
Optional equipment
- Foam-filled non-marking tyres
- Solid non-marking tyres
- 1.45 m (4'9") platform
- 1.83 m (6') platform
- 1.83 m (6') platform with swing gate
- Hydraulic oil cooler
- Glazier kit (glass carrier)
- Half-height mesh guard (platform with swing gate)
- Platform work light
- Overhead anti-collision device
Data from the manufacturer's official specification. The manufacturer reserves the right to change specifications.

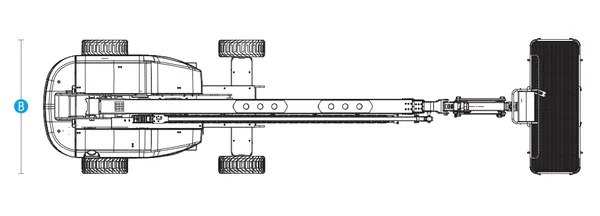

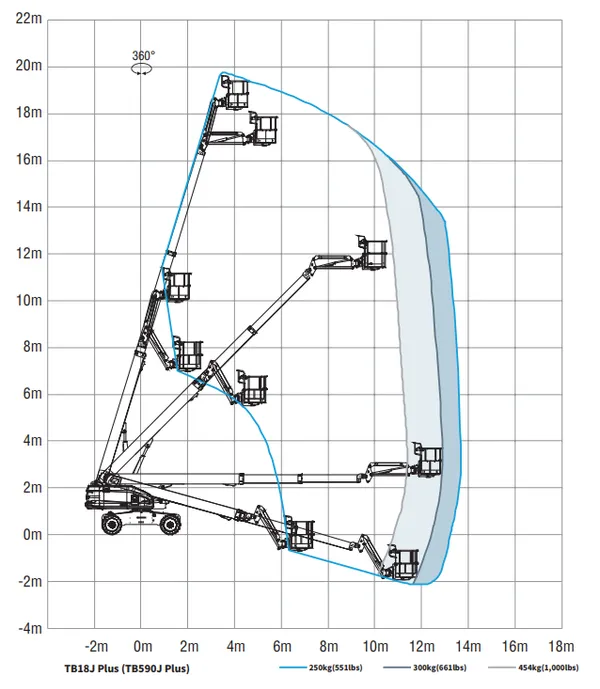

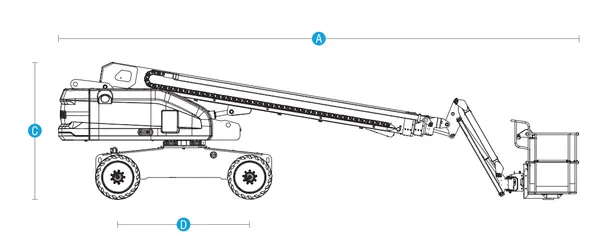

Drawings
